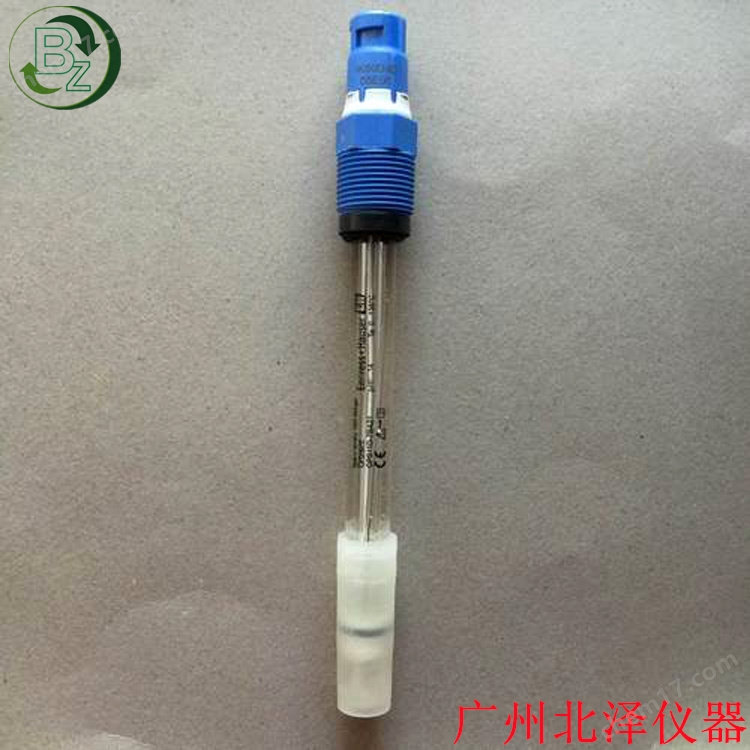

ph玻璃电极cps11e-ba7baa2

测量原理

ph玻璃电极cps11e-ba7baa2应用：

long-term monitoring and limit control in processes with stable process conditions
water and wastewater treatment

特点

digital ph electrode for standard applications in process and environmental technology with dirt-repellent ptfe ring junction and built-in temperature sensor

测量范围

application a
• ph: 1 to 12
application b
• ph: 0 to 14
application f
• ph: 0 to 10

测量原理

gel compact electrode with ptfe ring junction

设计

all shaft lengths with temperature sensor
advanced gel technology

材质

sensor shaft: glass to suit process
ph membrane glass: type a, b, f
metal lead: ag/agcl
aperture: ring-shaped ptfe junction, sterilizable
o-ring: fkm
process coupling: pps fibre-glass reinforced
nameplate: ceramic metal oxide

外形尺寸

diameter: 12 mm (0.47 inch)
shaft length: 120, 225, 360 and 425 mm
(4.72, 8.86, 14.17 and 16.73 inch)

过程温度

application a: –15 to 80 °c (5 to 176 °f)
application b: 0 to 135 °c (32 to 275 °f)
application f: 0 to 70 °c (32 to 158 °f)

过程压力

applications a and b:
0.8 to 17 bar (11.6 to 246.5 psi) absolute
application f:
0.8 to 7 bar (11.6 to 101.5 psi) absolute

温度传感器

ntc 30k

防爆认证

with atex, iecex, csa c/us, nepsi, japan ex and inmetro approvals for use in
hazardous areas zone 0, zone 1 and zone 2

连接

inductive, digital connection head with memosens 2.0 technology

防护等级

ip68

其他证书

其他证书

德国e h水质分析仪ph电极系列：

ph电极cps11e-aa7baa2

ph电极cps11d-7ba21

ph电极cps71d-7tb41

ph电极cps11e-aa7aaa2

ph电极cps11d-7aa21

ph电极cps11d-7bt21

ph电极cps11e-na7baa2

ph电极cpf81d-7lh11

ph电极cpf81d-7lh21

ph电极cpf81-lh11c2

ph电极cps71d-7tb21

ph电极cps11d-7bt2g

ph电极cps11d-7ba41

ph电极cps91d-7bt21

ph电极cps71d-7tp2g

ph电极cps11e-ba7baa2

ph电极电缆cyk10-a051

ph电极电缆cyk10-a101

多参数变送器cm442-aam1a2f010a ak

ph变送器cpm223-mr0005

ph变送器cpm253-mr0005

溶氧控制器cm442-3pq7/0

溶解氧电极cos41-2f

溶解氧传感器cos41-2f

溶解氧探头cos41-2f

溶解氧探头cos61d-aaa1a4

溶解氧探头cos61d-aaa1a3

溶解氧传感器cos61d-aaa1a3

溶解氧电极cos61d-aaa1a3

ph电极cps11e-aa7aaa2是数字式ph电极，适用于过程级测量和环境领域内的标准测量应用，采用memosens2.0数字技术。

应用：

•长期监测或稳定工况下的限值监控

•化工行业（强酸/强碱应用）、塑料化工行业、纸浆和造纸行业

•电厂（例如烟气净化），石油和天然气

•垃圾焚烧厂

•水和污水处理

•锅炉给水和冷却水

•井水和饮用水

•所有工业和市政水处理厂

通过atex、iecex、csa c/us、nepsi、jpn 和inmetro 认证，允许在防爆0区、防爆1区和防爆2区中使用。
